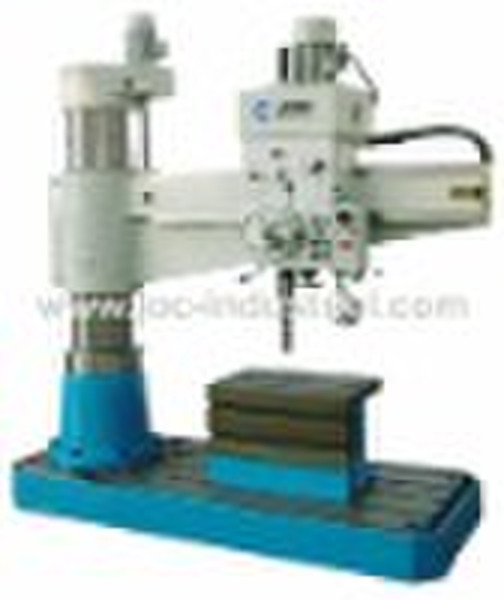

Radial drilling machine DRF5016

Specification: Max. drilling diameter(on 45 steel) Φ50/60Max. drilling diameter(on HT200 cast iron)72Max. distance from spindle to generating line of column350-1600Distance of horizontal movement for spindle box(manual)1250Max. distance between spindle end to the worktable surface of the base350-1250Max. travel of the spindle315Spindle taper boreMT.5Spindle speed stepsSteplessSpindle speed range (r/min)38-2000Spindle feed steps8Spindle feed range (mm/r)0.06-1.00Speed of rocker arm up and down movement (m/min)1.2Rotation angle of rocker arm (degree)±180Distance of spindle movement for calibrated dial each revolution (mm)122Max. torque of spindle (N/m)400Max. feed resisting force of spindle (N)16000Power of main motor (transducer motor )(KW)3.7Power of motor for rocker arm up and down movement (KW)1.1Power of oil pump motor for spindle box, column and rocker arm clamping0.75Weight of machine (without worktakbe) (Kg)3500Machine dimension (LxWxH) (mm)2490x1000x2598 Features: -Germany original 'Lenze' transducer spindle speed stepless, digital readout for the display of speed; -Strength spindle, with limiting protection for limiting position; -Electrical box and coolant button is on the right of spindle box; -Hydraulic pressure clamp; interlock of rocker arm clamping and up down movement; clamping of spindle and spindle box could be simultaneous or separated; -Trochoid thin oil lubrication; -With safety protection device that import from UK; -Importable electrical components with CE, CSA, UL standard; -Length worktable, supply inclined worktable and quick change collet as optional accessories. Standard accessories: Key type drill chuck; Connecting bar for drill chuck; Shaft sleeve for taper shank tool; Wedge for taper shank tool;
