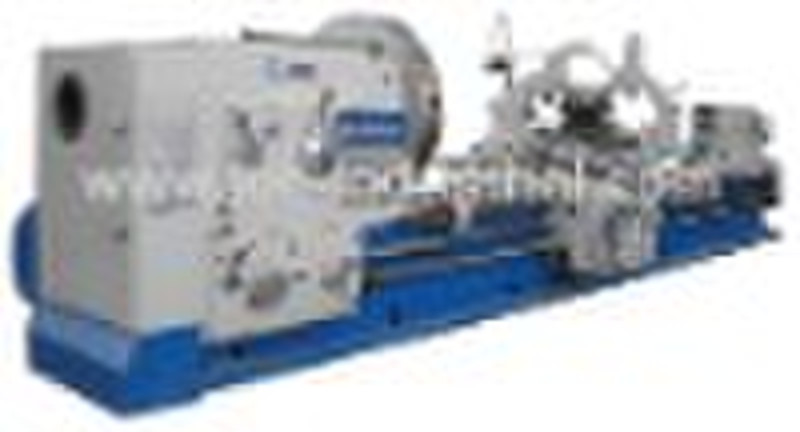

Large sized engine lathe LH100E

Specification:Max. swing over bed mm(in)1000(40)Max. swing over gap mm(in)1250(50)Max. swing over carriage mm(in)650(25)Max. turning length mm(in)1500-16000(60-640)Max. weight of workpiece between centers kg6000Width of the bed mm(in)755(30)Spindle noses No.A2-15Diameter of spindle in front bearing mm(in)200(8)Spindle hole mm(in)130(5.2)Taper hole of spindleMetric No.140Number of spindle speedsManual operating 21 stepsRange of spindle speeds r/min3.15-315Main motor power kWAC22Rapid travelling speed of motor power kW1.5Section of tool shank mm(in)45x45(1.8x1.8)Swivel angle of tool post±90°Travel of transverse tool post mm(in)-Travel of longitudinal tool post mm(in)200(8)Travel of cross slide mm(in)520(21)Rapid travelling speed of longitudinal tool post mm/min935Rapid travelling speed of transverse mm/min1870Rapid travelling speed of longitudinal mm/min3740Metric threads number and range mm45,1-120Whitworth number and range T.P.I42, 30-1/4Modul threads number and range mm46, 0.5-60Diametral threads number and range D.P.48, 60-0.5Number and range of longitudinal feeds m/rev97,0.064-12Number and range of transverse feeds m/rev97,0.032-6Feed number and range of cross m/rev97,0.016-3Diameter of tailstock quill mm(in)160(6.4)Taper hole of tailstock quillMetric No.80Travel of quill mm(in)300(12)Weight of the lathe with 3m kg10800Additional weight per 1m kg1200Machine overall dimension (LxWxH) mm6100x1900x2000
